4'' dial 0-280 kg 3/8 bsp bottom complete ss gly filledA 4' (100 mm) dial, 0–280 kg/cm² (bar), 3/8' BSp bottom-entry, complete stainless steel, glycerin-filled Bourdon tube pressure gauge is a heavy-duty industrial and hydraulic instrument designed to dampen vibration and resist corrosion. Dial Size: 4 inches (100 mm 0–280 kg/cm² (approx. 280 bar / ~4, 000 psi; often supplied with single or dual scale) • Process Connection: 3/8' BSP (British Standard Pipe) male thread • Mounting / Entry: Direct mount, bottom entry (vertical) • Liquid Filling: Glycerin (dampens pointer flutter from mechanical vibration and pressure pulsation; lubricates internal…Read updateNov 18th, 2026 10:54 AM
4'' DIAL0-300 PSI 3/8 BSP BOTTOM MS CASING INT BRASS• 4 inches (100 mm nominal diameter) • Pressure Range: 0 to 300 PSI (with corresponding bar/kg/cm² dual scale options usually available) • Connection Type & Size: Bottom entry connection, 3/8' BSP (British Standard Pipe) male thread • Case Material: Mild Steel (MS) or pressed steel, stove-enameled or powder-coated black finish • Wetted Parts / Socket & Bourdon Tube: Brass / Copper alloy (non-ferrous) • Movement: Brass / Non-ferrous gear mechanism • Window / Dial Face: Plain sheet glass with white aluminum dial background and black markings/graduations • Accuracy Class: ±1.5% to ±2.0% of Full…Read updateSep 30th, 2026 10:55 AM
2'' DIAL0-300 PSI 1/4 BSP B/C COMPLETE SS GLY FILLEDDial Size: 2 inches (50 mm)Pressure Range: 0 to 300 PSI (often includes a dual scale showing 0 to 21 bar/kg/cm²)Connection Size: 1/4' BSP (British Standard Pipe)Connection Location: Back Connection (Center Back Mount)Liquid Filling: Glycerin (99.5% pure)Material: Full Stainless Steel (SS 304 or SS 316 case and internal wetted parts) Accuracy: ±1.6% or ±2.5% of Full Scale Value (typically Class 1.6)Operating Temperature: -20°C to +60°C (-4°F to +140°F)Window Material: Poly carbonate or Tempered Glass Pointer: Black aluminum, fixed Dial Plate: Aluminum, white background with black/blue markings…Read updateSep 28th, 2026 10:51 AM

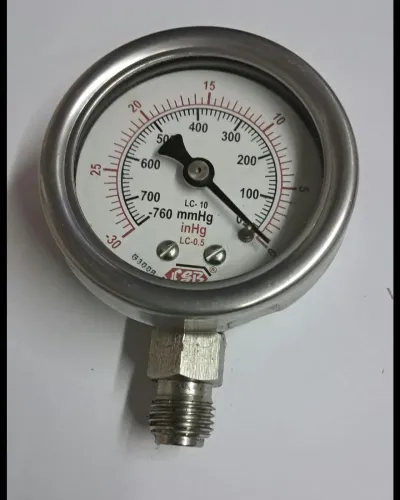

2''DIAL-VACUUM 1/4 BSP BOTTOM COMPLETE SSDial Size2 inches (50 mm)Measurement Range-760 mm Hg to 0 (Metric) / -30 in Hg to 0 (Imperial) dual scale Process Connection 1/4' BSP (British Standard Pipe) male thread Mounting Entry Direct bottom entry (lower mount / stem mount)Accuracy Class±1.6% to ±2.5% of Full Scale Deflection (FSD)Design Standard Generally conforms to EN 837-1 or ASME B40. 100 Because it is specified as 'Complete SS, ' both the external structural components and internal wetted parts are manufactured from stainless steel:Case & Bezel Ring: Stainless Steel 304 (typically crimped casing or bayonet type).Bourdon Tube…Read updateSep 28th, 2026 10:48 AM

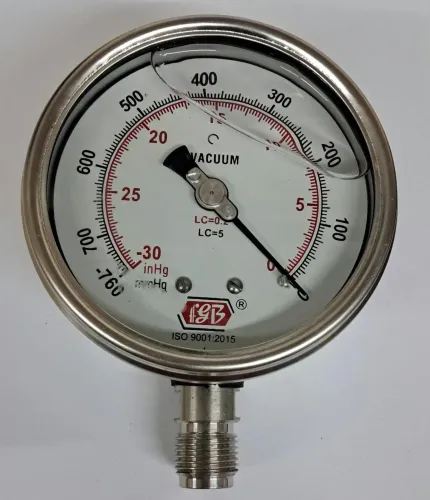

4'' DIAL-VACUUM 1/2 BSP BOTTOM COMPLETE SS GLY FILLEDDial Size: 4 inches (100 mm)Measurement Range: Vacuum range (typically 0 to -1 bar or 0 to -30 in Hg / -760 mm Hg)Mounting / Entry: Bottom connection (Direct mounting)Process Connection: 1/2' BSP (British Standard Pipe) Male Wetted Parts & Movement: Stainless Steel (SS 316 or SS 304)Case & Bezel Material: Stainless Steel (SS 304 with crimped or bayonet ring)Window / Lens: Safety glass or poly carbonate Liquid Filling: Glycerin filled (for vibration dampening and pointer stabilization)Accuracy Class: Typically ±1.0% of full-scale value (Class 1)Operating Temperature: Maximum ambient/process…Read updateSep 26th, 2026 1:46 PM

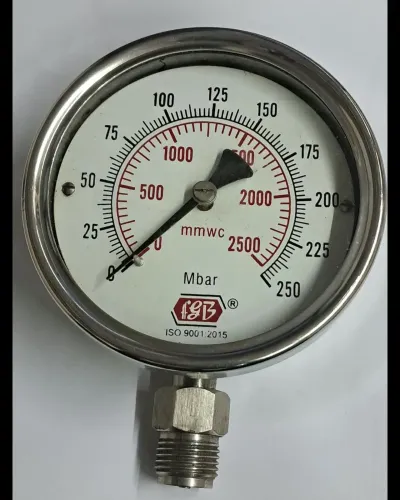

4’’ DIAL0‐2500 MMWC ½ BSP BOTTOM SS CASING INT BRASS INBUILT CAPSULE DIAPHRAGMDial Size: 4 inches (100 mm) diameter face for clear analog readability.Pressure Range: 0 to 2500 mmWC (Millimeters of Water Column), optimized for low-range measurement. Process Connection: 1/2' BSP (British Standard Pipe) thread Connection Location: Bottom-mounted configuration Casing Material: Stainless Steel (SS) outer body for corrosion resistance and durability Internal Components/Measuring Element: Brass mechanism and internal wetted parts. Sensing Element: Inbuilt capsule diaphragm (consisting of two corrugated metallic diaphragms sealed together to react to minute pressure variations…Read updateSep 25th, 2026 1:05 PM
2'' DIAL-VACUUM 1/4 BSP BOTTOM COMPLETE SS2 inches (50 mm)Measurement Range: -760 mmHg to 0 (Metric) / -30 in Hg to 0 (Imperial) dual scale Process Connection: 1/4' BSP (British Standard Pipe) male thread Mounting Entry: Direct bottom entry (lower mount)Material (Case & Bezel): Stainless Steel 304 (crimped or bayonet type ring)Material (Wetted Parts & Internals): Stainless Steel 316 or 304 (Bourdon tube and socket connection)Window/Lens: Poly carbonate, shatterproof glass, or toughened instrument glassRead updateSep 24th, 2026 11:59 AM

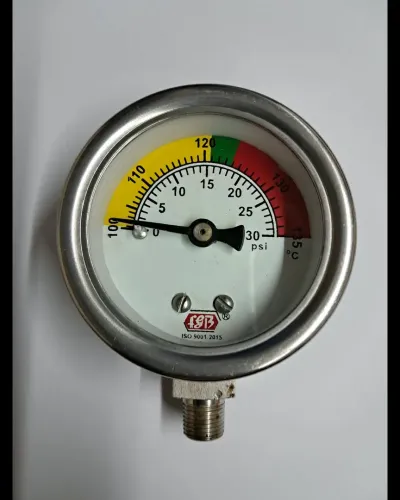

2''DIAL0-30 PSI 1/8 NPT BOTTOM COMPLETE SSDial Size: 2 inches (approx. 50 mm nominal diameter).Pressure Range: 0 to 30 PSI.Scale: Usually supplied as a dual-scale displaying 0–30 PSI and 0–2 Bar (or kg/cm²).Display Type: Analog pointer dial with bold, clear incremental markings Thread Size: 1/8' NPT (National Pipe Thread standard).Connection Location: Lower / Bottom mount (often designated as LM).Connection Material: Full 304 or 316 Stainless Steel (Complete SS ase & Bezel: 304 Stainless Steel (crimped or rolling bezel ring).Internal Movement: Stainless Steel (gears and segments).Bourdon Tube & Socket: Stainless Steel (wetted parts…Read updateSep 23rd, 2026 3:18 PM

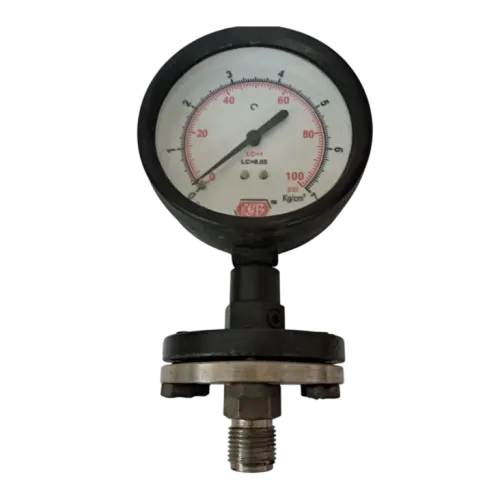

4'' dial 0-100 3/8 bsp bottom ms casing in brass diaphragmDial Size 4' (100 mm)Standard industrial face for clear visibility Pressure Range 0–100 Usually specified in PSI (approx. 0–7 bar) or kg/cm²Casing (Body)Mild Steel (MS)Painted/enamelled black steel housing; economic, non-weatherproof or splash-proof Internals Brass Brass movement, socket, and tube/capsule element Process Connection 3/8' BSP (Bottom)British Standard Pipe parallel/taper male connection, bottom-mounted Diaphragm Seal Brass solates process media from the gauge internal movement; suitable for non-aggressive or mild aqueous/pneumatic services where clogging/fouling is a riskRead updateSep 21st, 2026 3:21 PM

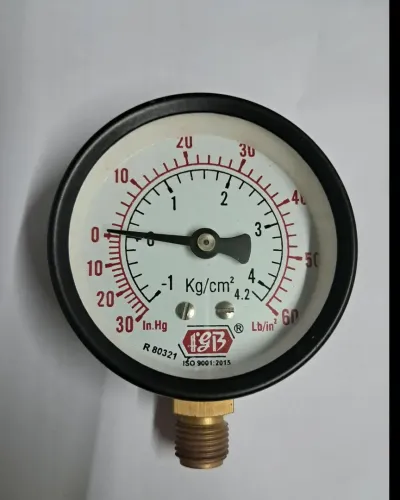

2'' DIAL-30+60 PSI 1/4 BSP BOTTOM MS CASING INT BRASSDial Size 2' (50 mm)Compact face for tight panelsRange30–60 PSI Dual/compound scale options available Connection 1/4' BSP (Male)Standard parallel pipe thread, bottom entry Casing Mild Steel (MS)Painted/powder-coated industrial steel Internals Brass Bourdon tube and movement in copper alloy/brass Accuracy±1.6% to ±2% FSD Full scale deflection standard for commercial gradeRead updateSep 18th, 2026 1:42 PM
