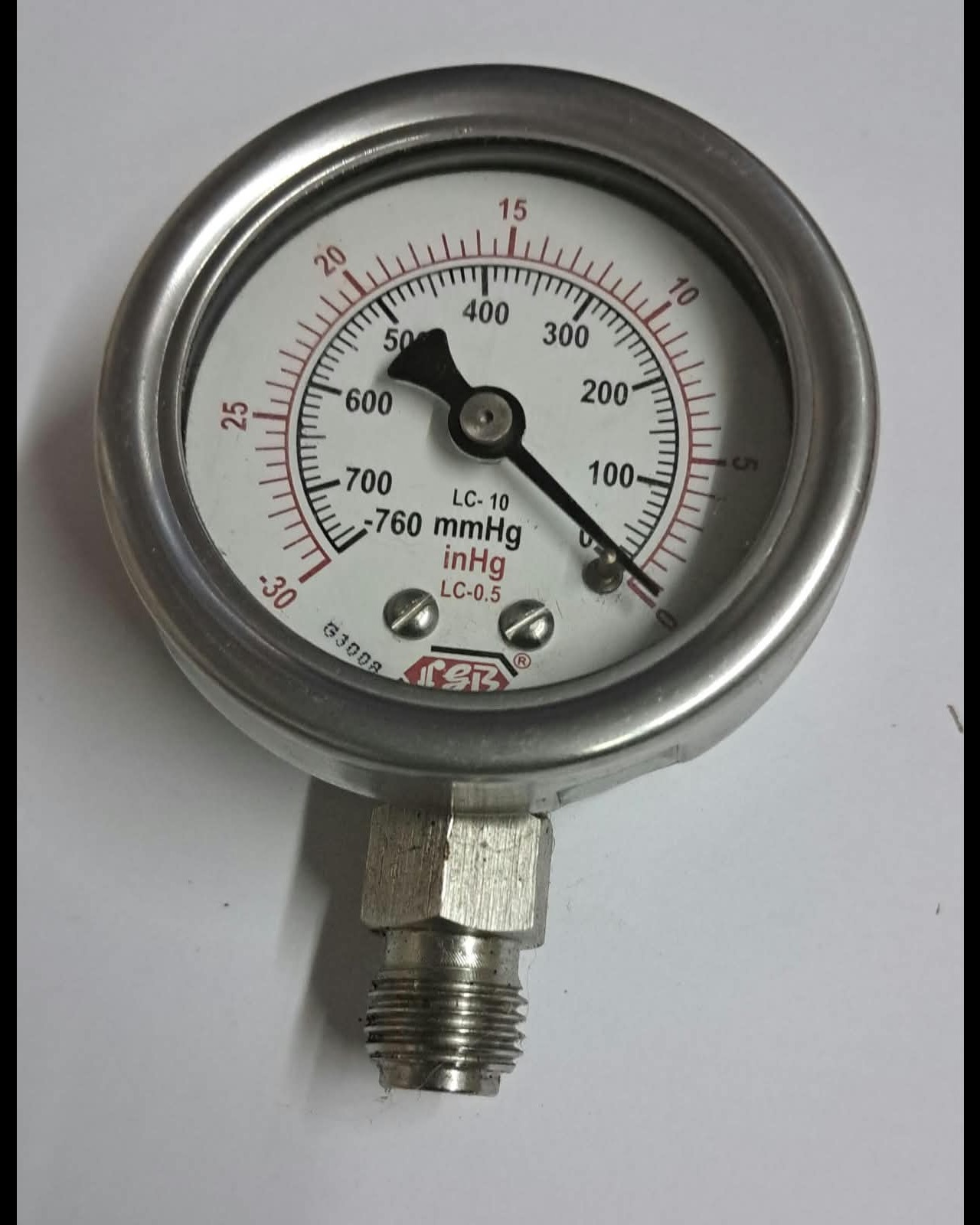

Dial Size2 inches (50 mm)Measurement Range-760 mm Hg to 0 (Metric) / -30 in Hg to 0 (Imperial) dual scale Process Connection 1/4' BSP (British Standard Pipe) male thread Mounting Entry Direct bottom entry (lower mount / stem mount)Accuracy Class±1.6% to ±2.5% of Full Scale Deflection (FSD)Design Standard Generally conforms to EN 837-1 or ASME B40. 100 Because it is specified as 'Complete SS, ' both the external structural components and internal wetted parts are manufactured from stainless steel:Case & Bezel Ring: Stainless Steel 304 (typically crimped casing or bayonet type).Bourdon Tube: Stainless Steel 316.Movement Mechanism: Stainless Steel 304 / 316 (ensures corrosion resistance against harsh environments).Shank/Socket (Connection): Stainless Steel 316.Window/Lens: Shatterproof glass, toughened instrument glass, or clear poly carbonate
