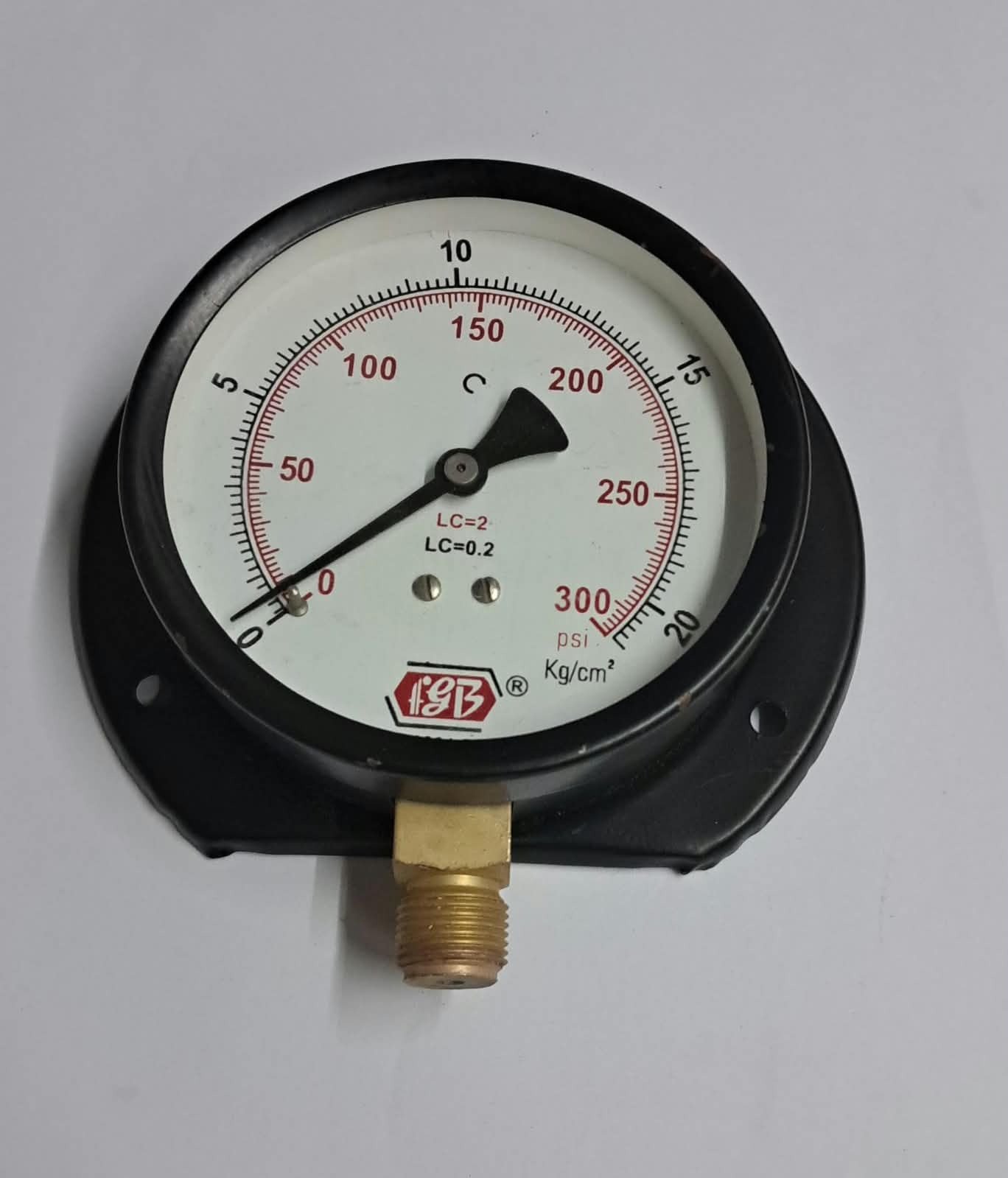

• 4 inches (100 mm nominal diameter)
• Pressure Range: 0 to 300 PSI (with corresponding bar/kg/cm² dual scale options usually available)
• Connection Type & Size: Bottom entry connection, 3/8' BSP (British Standard Pipe) male thread
• Case Material: Mild Steel (MS) or pressed steel, stove-enameled or powder-coated black finish
• Wetted Parts / Socket & Bourdon Tube: Brass / Copper alloy (non-ferrous)
• Movement: Brass / Non-ferrous gear mechanism
• Window / Dial Face: Plain sheet glass with white aluminum dial background and black markings/graduations
• Accuracy Class: ±1.5% to ±2.0% of Full Scale (standard commercial grade per IS 3624 guidelines)
• Mounting: Direct bottom mounting
• Pressure Range: 0 to 300 PSI (with corresponding bar/kg/cm² dual scale options usually available)
• Connection Type & Size: Bottom entry connection, 3/8' BSP (British Standard Pipe) male thread
• Case Material: Mild Steel (MS) or pressed steel, stove-enameled or powder-coated black finish
• Wetted Parts / Socket & Bourdon Tube: Brass / Copper alloy (non-ferrous)
• Movement: Brass / Non-ferrous gear mechanism
• Window / Dial Face: Plain sheet glass with white aluminum dial background and black markings/graduations
• Accuracy Class: ±1.5% to ±2.0% of Full Scale (standard commercial grade per IS 3624 guidelines)
• Mounting: Direct bottom mounting
