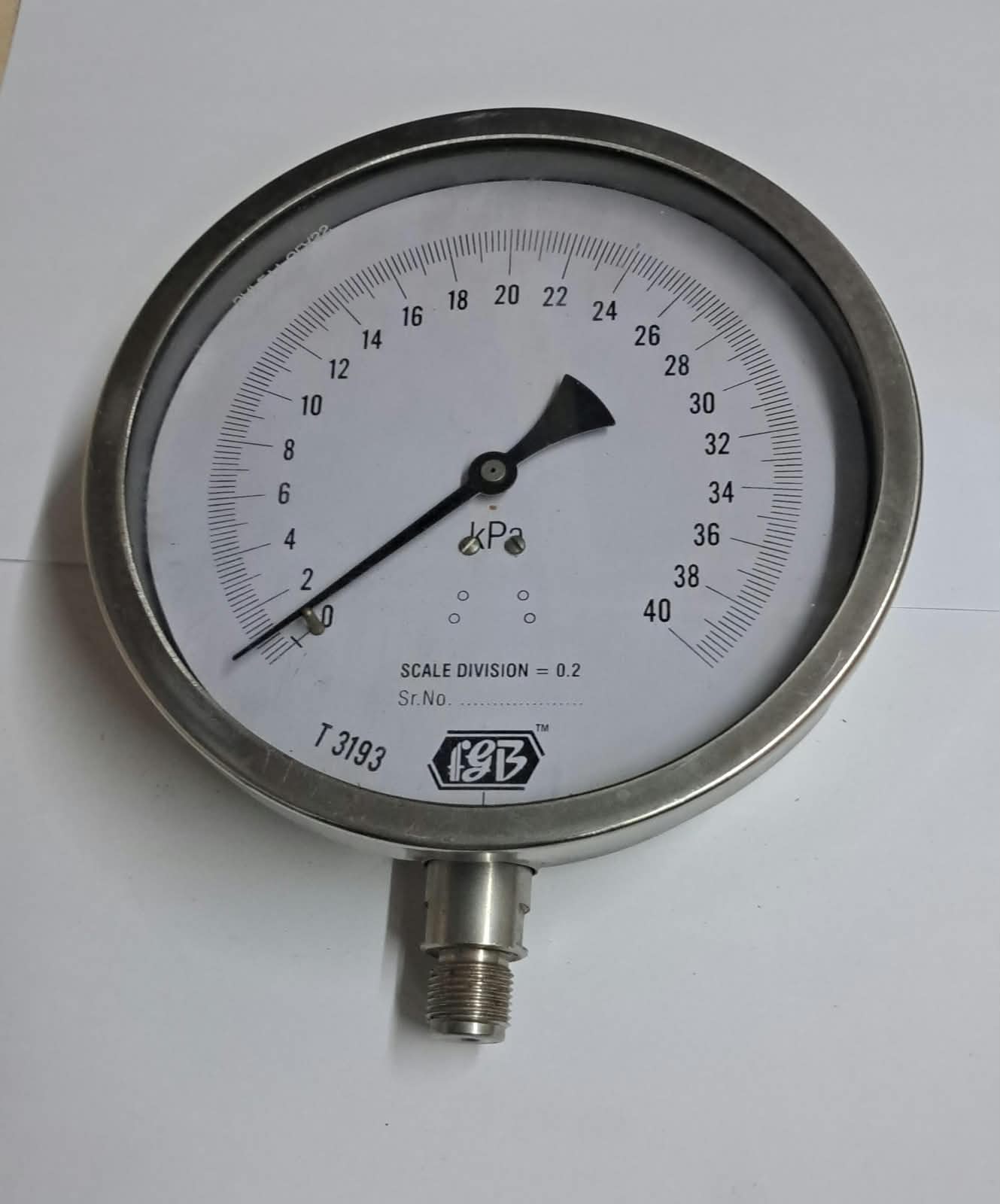

6'' DIAL0-40 KPA 1/2 BSP BOTTOM COMPLETE SS

Dial Size: 6 inches (150 mm)Pressure Range: 0 to 40 kPa (Kilopascals)Connection Size: 1/2" BSP (British Standard Pipe)Connection Location: Bottom mount Material: Complete Stainless Steel (SS304 or SS316 for case, movement, socket, and sensing element) Sensing Element: Capsule type (highly sensitive, typically used for low-pressure ranges like kPa) or Bourdon tube Accuracy Class: Typically ±1.0% or ±1.6% of full-scale value Window Material: Laminated safety glass or acrylic Pointer: Black aluminum, often micro-adjustable Dial Plate: White aluminum with black markings Ingress Protection: IP65 / IP66 (weatherproof and dust proof)Liquid Filling: Glycerin or Silicone fillable (optional, used to damp vibrations and pulsations)Operating Temperature:Ambient: -40°C to 65°C Medium: Up to 200°C (unfilled) or 100°C (glycerin filled)Common ApplicationsLow-pressure gas systems Medical and laboratory equipment HVAC and cleanroom monitoringChemical and petrochemical processing lines requiring high corrosion resistance
