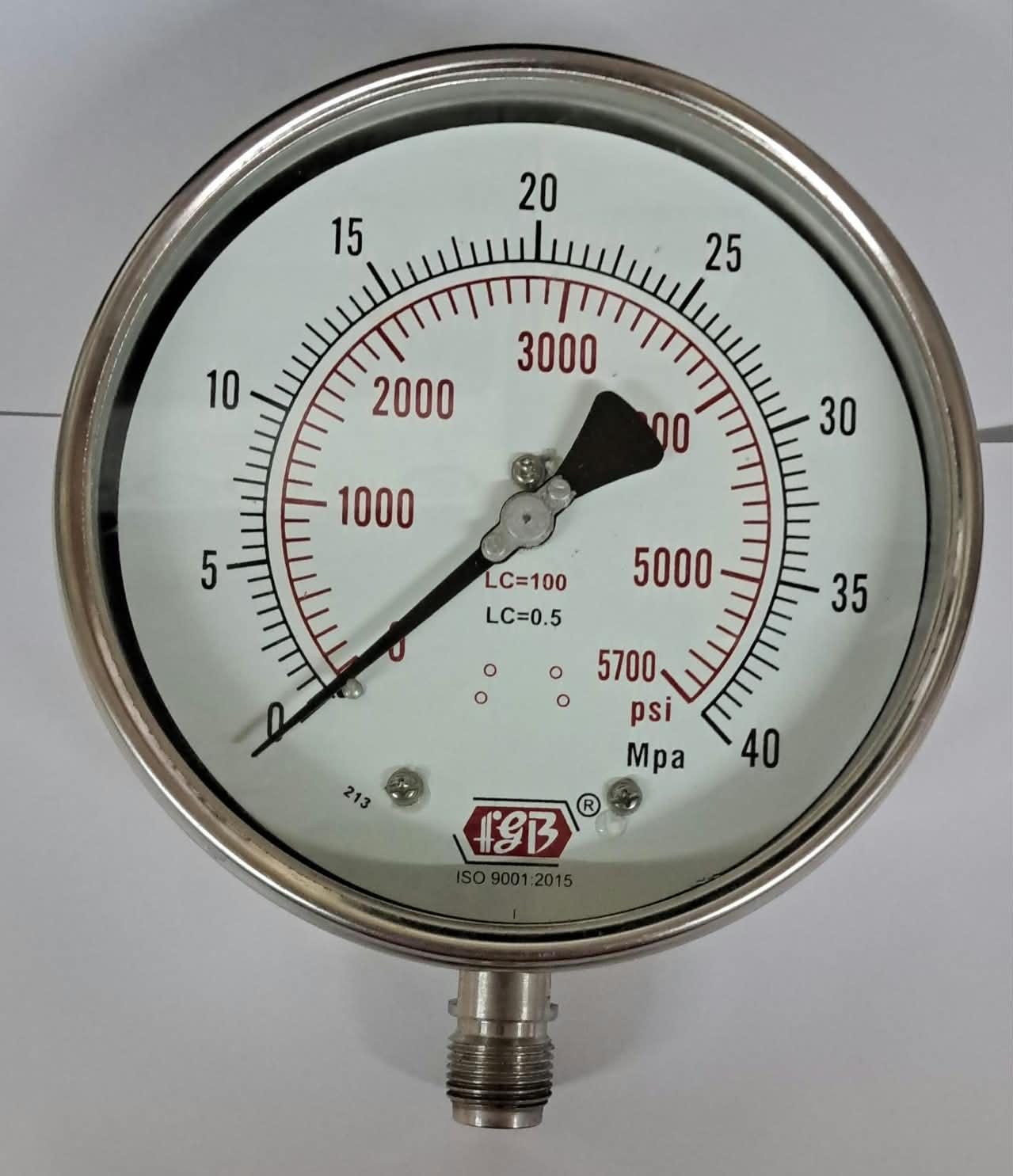

6'' DIAL 0-40 MPA 1/2 BSP BOTTOM COMPLETE SS

Dial Size: 6 inches (150 mm)Pressure Range: 0 to 40 MPa (Megapascals)Connection Size: 1/2" BSP (British Standard Pipe)Connection Location: Bottom mount Material: Complete Stainless Steel (SS 304/SS 316) Accuracy Class±1.0% of Full Scale Value (Class 1)Case & Bezel Material Stainless Steel 304 (Bayonet type ring)Wetted Parts Stainless Steel 316 (Bourdon tube and shank)Movement Stainless Steel 304 Window Laminated Safety Glass / Tough Glass Pointer Aluminum, black finish (Micro-adjustable preferred)Dial Face Aluminum, white background with black markings Over pressure Limit 130% of maximum scale value (Short time)Operating Temperature Ambient: -40°C to +60°C | Medium: Max +200°C (Unfilled)Ingress Protection IP 65 / IP 66
