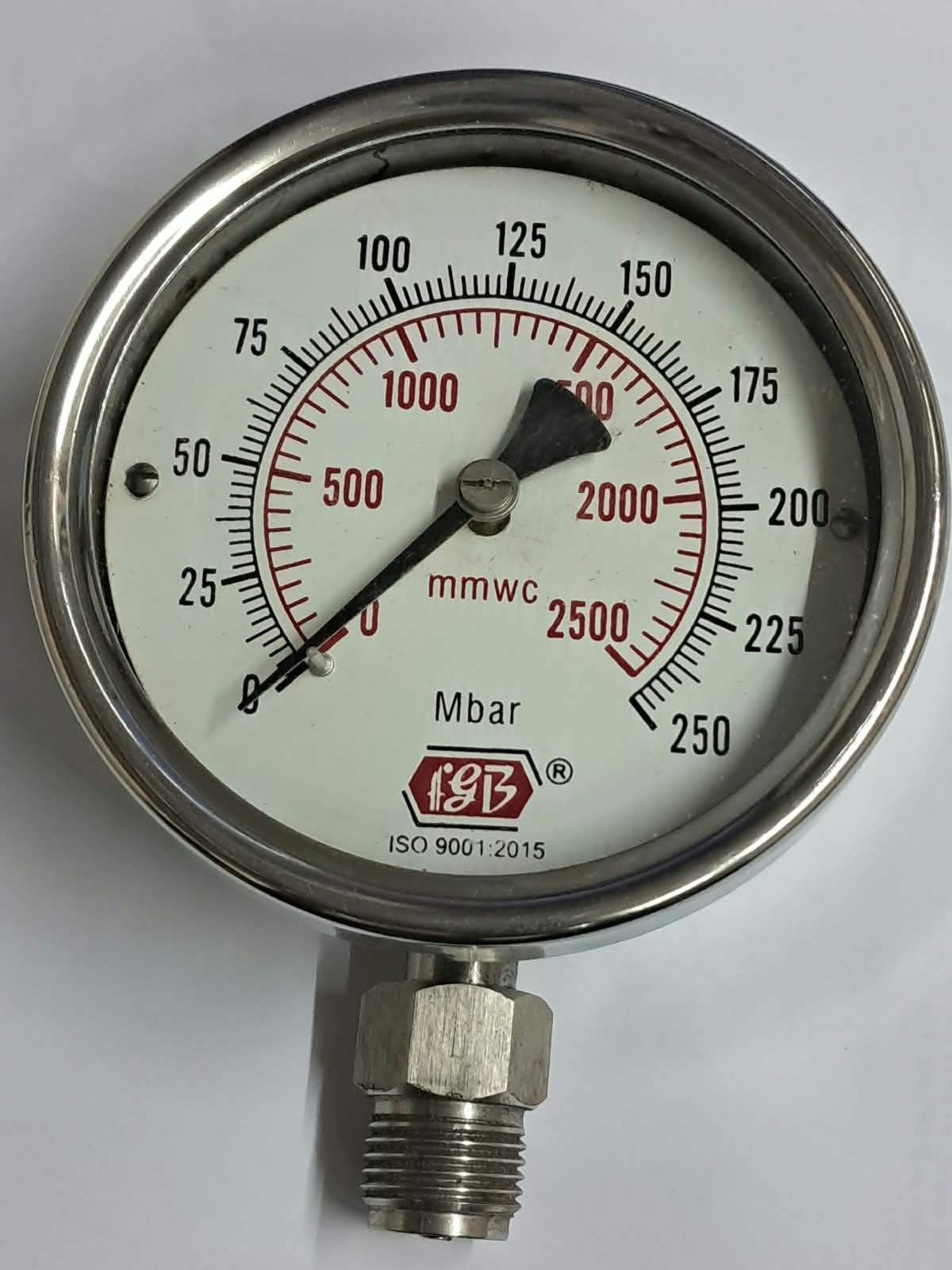

4’’ DIAL0‐2500MMWC ½ BSP BOTTOM SS CASING INT BRASS INBUILT CAPSULE DIAPHRAGM

Dial Size 4“ / 100 mm

Dial Colour White with black graduations

Pressure Range 0–2500 mmWC

Unit mmWC (mm Water Column)

Connection ½” BSP

Connection Position Bottom

Case / Casing Stainless Steel (SS)

Internal Movement Brass

Sensing Element Inbuilt Capsule Diaphragm

Capsule Material SS 316 / SS 316L or suitable non-ferrous material

Window Toughened / safety glass

Pointer Black aluminium

Accuracy ±1.6% to ±2% FSD, depending on construction

Mounting Bottom connection, direct mounting

Application Low-pressure measurement of clean, dry air and gases

Reference Standard EN 837 / IS 3624, where applicable A 0–2500 mmWC range is within the commonly available range for capsule/low-pressure diaphragm gauges. Your requested 4“ SS casing with brass internal movement, ½” BSP bottom connection and inbuilt capsule diaphragm also matches the type of construction offered for this pressure range.4“ DIAL, 0–2500 MMWC, ½” BSP BOTTOM, SS CASING, INTERNAL BRASS, INBUILT CAPSULE DIAPHRAGM, WHITE DIAL, BLACK MARKING, LOW PRESSURE GAUGE.
