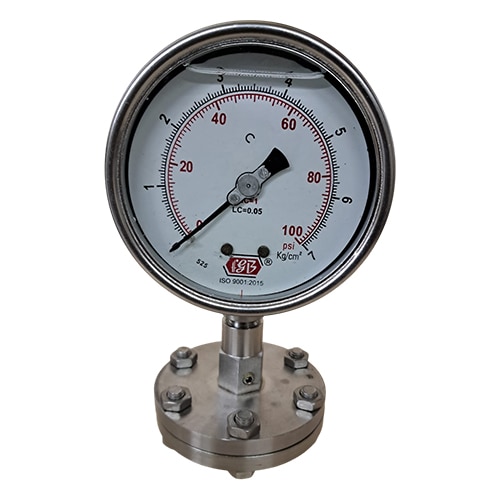

4’’ DIAL0-7KG ½ BSP Bottom Chemical seal Diaphram complete ss gly filled

Type Chemical Seal / Diaphragm Seal

Construction Complete Stainless Steel

Diaphragm Material SS 316 / SS 316L

Seal Body SS 316

Filling Glycerine Filled

Process Connection As per requirement – 1/2“ BSP / NPT / Flanged

Instrument Connection 1/2” BSP / NPT or as required

Diaphragm Design Flush / Welded Diaphragm

Mounting Direct / Remote, as required

Wetted Parts SS 316

Gasket Material PTFE / suitable chemical-resistant material

Pressure Range As required

Operating Temperature Typically up to 100°C, depending on fill and application

Application Corrosive, viscous, contaminated or crystallizing fluids

Fill Fluid Glycerine

Finish SS natural / polished

Accessories Pressure gauge, capillary, flushing connection, etc., as required

Short purchase specification:

CHEMICAL SEAL DIAPHRAGM, COMPLETE SS 316, DIAPHRAGM SS 316L, GLYCERINE FILLED, PROCESS CONNECTION 1/2" BSP/NPT, FLUSH DIAPHRAGM, SUITABLE FOR CORROSIVE/CHEMICAL SERVICE, WITH PRESSURE GAUGE CONNECTION.
