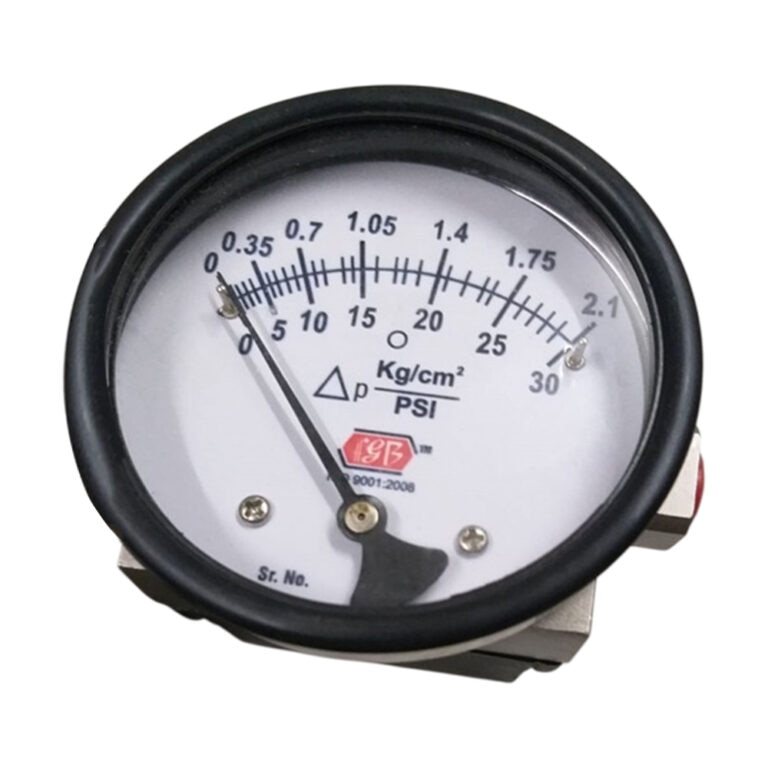

4'' DIAL0-30 PSI PISTON TYPE DIFFERENTIAL PRESSURE GAUGES

A Piston Type Differential Pressure Gauge measures the pressure difference between the high-pressure and low-pressure ports using a magnetic piston and compression spring. It is commonly used for filters, water treatment, hydraulic systems, air dryers and leak detection.Type Piston Type Differential Pressure Gauge

Sensing Element Magnetic Piston with Compression Spring

Dial Size 63, 100 & 150 mm

Accuracy ±2% F.S. ascending

Differential Pressure Range 0–0.25 to 0–70 bar, depending on model

Static / Working Pressure Up to 200 bar; higher options available depending on construction

Case Material SS 304

Body / Wetted Parts Aluminium / SS 316 / SS 316L / Brass / Monel

Spring SS 302 / SS 316

Magnet Ceramic / Hard Ferrite

Seal Material Buna-N; Viton / EPDM optional

Process Connection ¼″ NPT(F) / ¼″ BSP(F)

Port Configuration Bottom / Back / In-line

Mounting Direct / Surface / Front Flange / Pipe Mounting

Window Glass / Acrylic / Toughened or Safety Glass

Ingress Protection IP65 / IP66 depending on model

Ambient Temperature Typically up to 65–80°C

Media Temperature Typically up to 80°C

Filling Dry standard; Glycerine/Silicone filling optional

Over-range Protection Up to maximum working/static pressure

Optional Features Magnetic reed switch, follower pointer, dual scale, customized dial Piston Type Differential Pressure Gauge – Compact and robust differential pressure measuring instrument with magnetic piston sensing technology, suitable for measuring pressure drops across filters, hydraulic systems, air/gas systems and water-treatment equipment. Typical construction includes an SS304 case, SS316/Aluminium body, ceramic magnet, compression spring, ±2% F.S. accuracy, IP65 protection and ¼″ NPT/BSP connections.Piston Type Differential Pressure Gauge, Magnetic Piston Differential Pressure Gauge, DP Gauge, Piston DP Gauge, Differential Pressure Gauge Manufacturer, Industrial DP Gauge.
