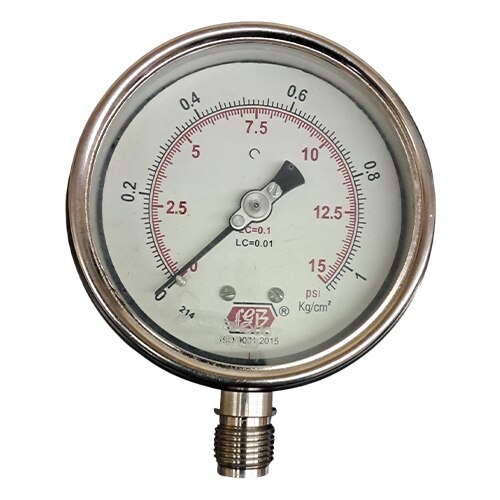

4'' DIAL0-15 PSI 3/8 BSP BOTTOM COMPLETE SS
INR 1600
In stock
Description
Type Bourdon Tube Pressure Gauge
Dial Size 4 inch (100 mm)
Range 0–15 PSI
Process Connection 3/8“ BSP Bottom
Case Material SS 304
Bourdon Tube SS 316
Socket / Connection SS 316
Movement Stainless Steel
Dial White aluminium, black graduations
Pointer Black aluminium
Window Toughened glass
Accuracy ±1.0% FSD
Mounting Bottom Entry
Filling Dry / Glycerine Filled, as required
Wetted Parts SS 316
Application Industrial / corrosive service
Short specification for quotation/PO:
PRESSURE GAUGE, 4” DIAL (100 MM), RANGE 0–15 PSI, 3/8" BSP BOTTOM, BOURDON TUBE TYPE, COMPLETE SS, SS 304 CASE, SS 316 WETTED PARTS, ACCURACY ±1.0% FSD, TOUGHENED GLASS WINDOW.
