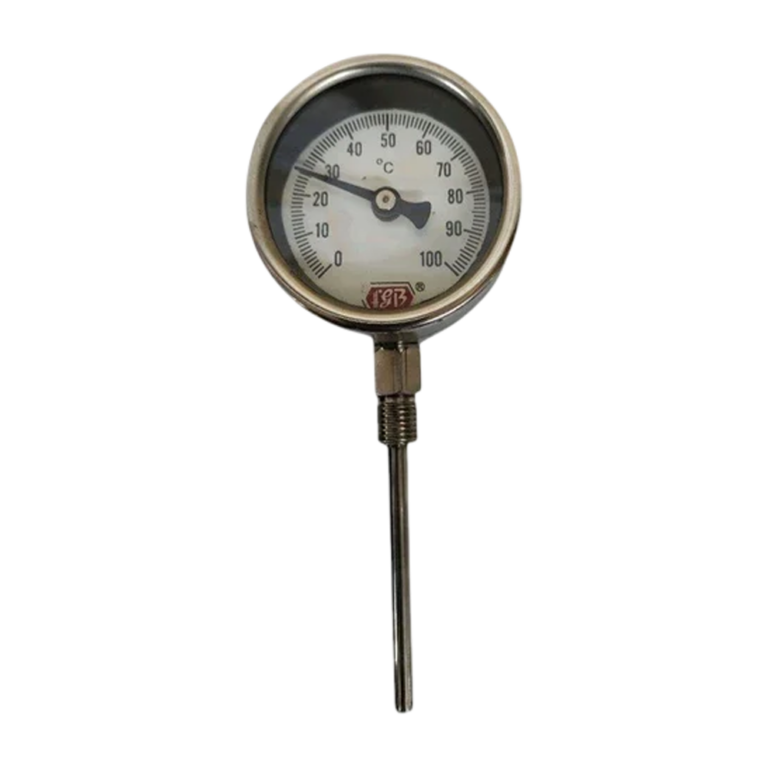

4'' DIAL0-100 DEG 1/2 BSP BOTTOM BY METAL TEM GAUGE

Specification Details

Type Bimetallic / Gas Filled / Mercury Filled

Dial Size 100 mm – 150 mm

Accuracy ±1% of Full Scale

Case & Bezel SS 304

Dial Aluminium, white background with black numerals

Bulb & Stem Material SS 316

Bulb / Stem Diameter 8 / 10 mm or as required

Movement Material SS 304

Bourdon Tube SS 316

Mounting Bottom connection, surface mounting

Process Connection ½" NPT(M), adjustable fitting

Stem Length As per requirement

Capillary SS 304, standard 3 m

Over-range Protection 120% of full scale

Window Acrylic glass

Standard Feature Zero adjustment pointer

These detailed specifications are published for the Capillary Type Mercury Filled Temperature Gauge on the same website
