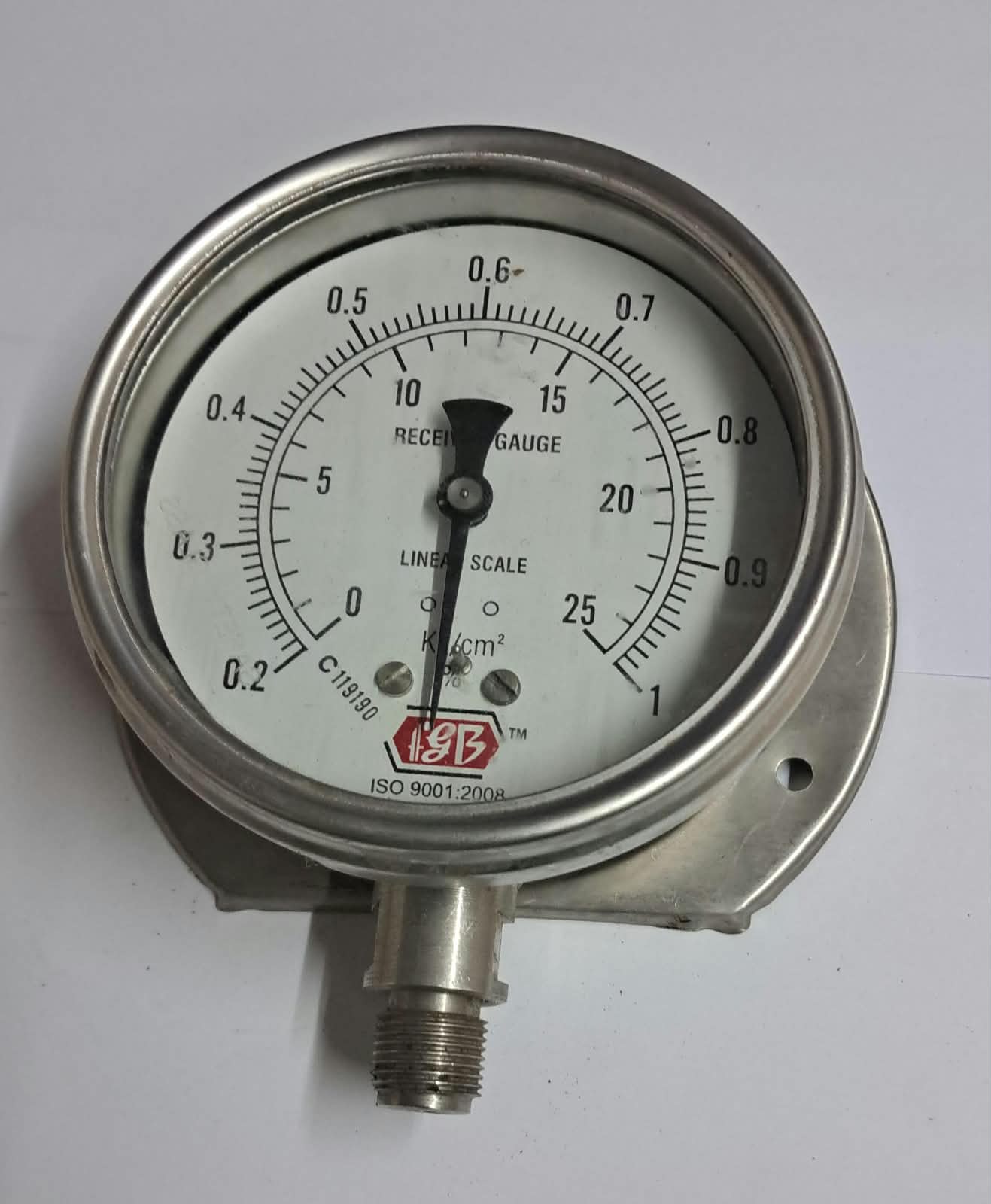

4'' DIAL0-1 KG 3/8 BSP BOTTOM COMPLETE SS Receiver Gauge

Dial Size 4 inches (100 mm)Pressure Range 0 to 1 kg/cm² (Typically dual-scaled with 0–14.2 PSI or 0–100% linear receiver scale)Connection Size 3/8" BSP (British Standard Pipe)Connection Location Bottom Entry / Lower Mount (Direct Mounting)Type of Gauge Bourdon Tube / Capsule Type Receiver Gauge Case Material Stainless Steel 304 (Bayonet type or Crimped) Wetted Parts (Socket & Tube)Stainless Steel 316 / 316L (for high corrosion resistance)Movement Materia lStainless Steel 304 Accuracy Class±1.0% to ±1.6% of Full Scale Deflection (FSD)Window/Lens Shatterproof Safety Glass or Toughened Instrument Glass Dial Plate White-coated Aluminum with distinct black and red graduation markings Pointer Black Aluminum, Micro-adjustable (zero reset option available on premium models)Ingress Protection Weather proof IP65 / IP66 Filling (Optional)Dry (Standard) or Glycerin/Silicon Oil filled (for heavy dampening against pulsations/vibrations)
