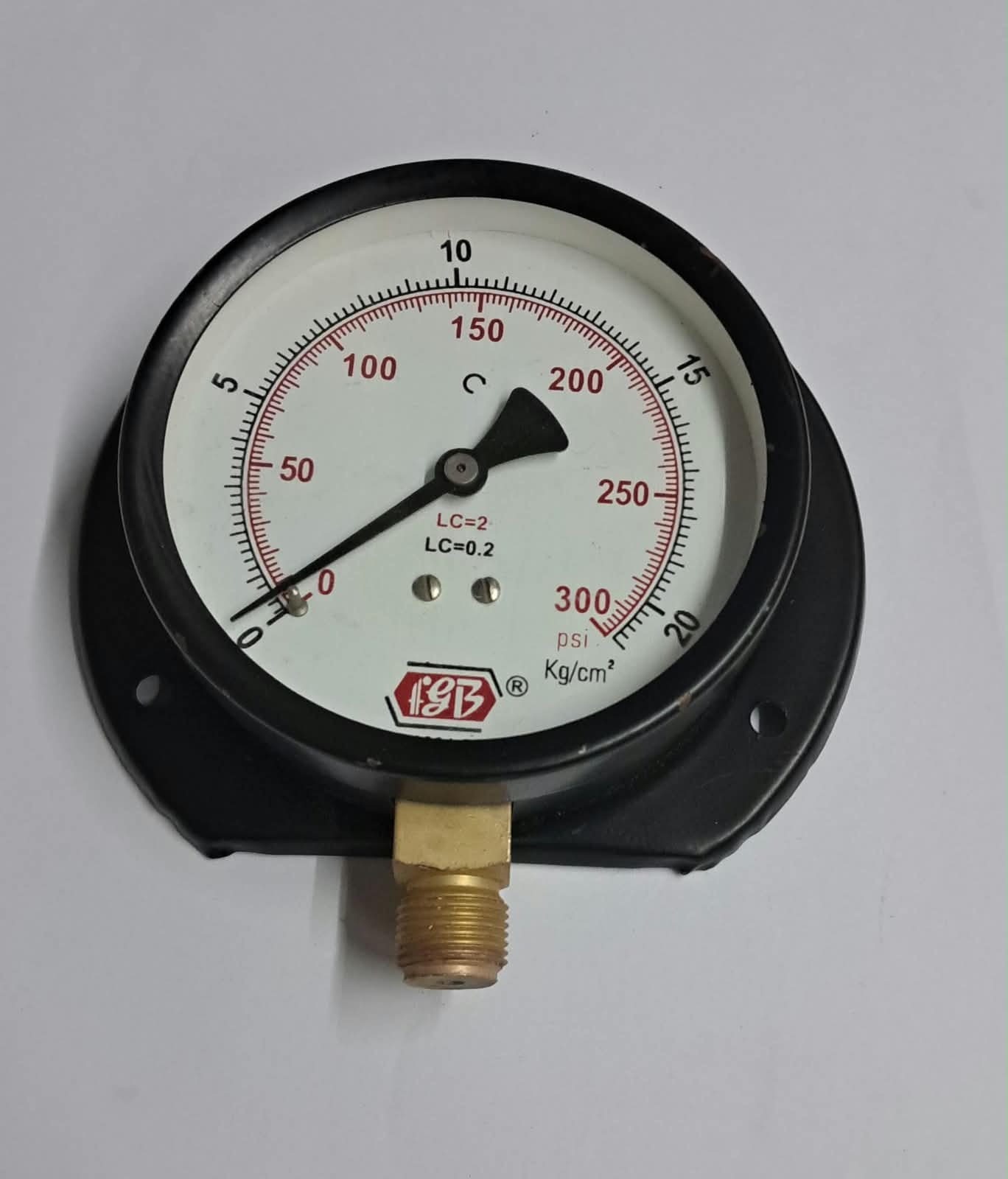

4'' DIAL 0-300 PSI 3/8 BSP BOTTM MS CASING INT BRASS

• Pressure Range: 0–300 PSI (with corresponding bar/kg/cm² dual scale options)

• Mounting Type: Direct Bottom entry

• Connection Thread: 3/8" BSP (British Standard Pipe)

• Case Material: Mild Steel (MS) / Pressed Steel (powder-coated or painted black)

• Wetted Parts / Socket & Bourdon Tube: Brass / Copper alloy (Non-ferrous)

• Movement: Brass / Non-ferrous gear mechanism

• Window / Dial Face: Plain sheet glass with a white aluminum dial and black lettering

• Accuracy: ±1.5% to ±2% of Full Scale (depending on commercial grade standards like IS 3624)
