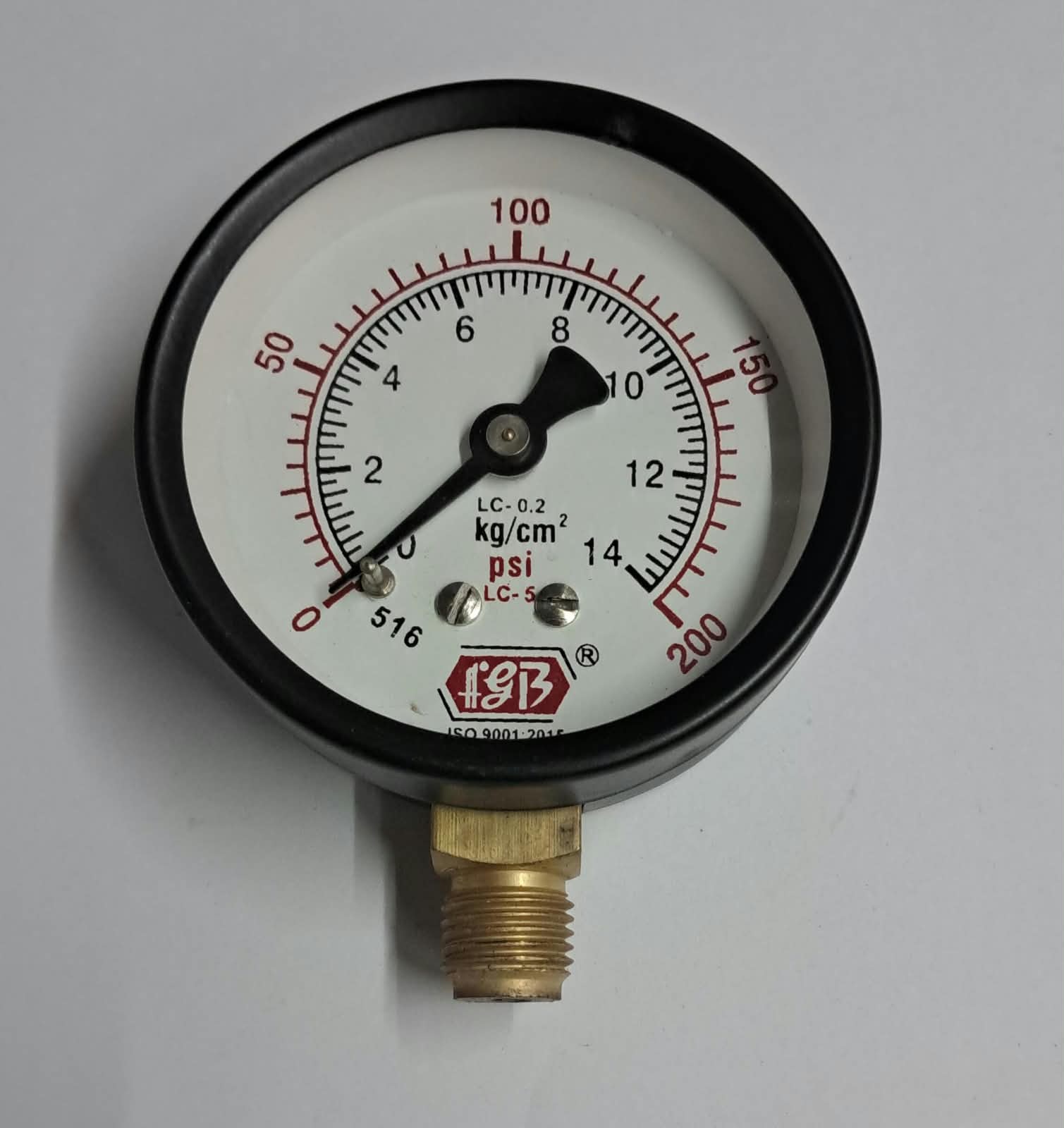

21/2'' DIAL0-200 PSI 1/4 BSP BOTTOM MS CASING INT BRASS

• Dial Size: 2 1/2 inches (approximately 63 mm)

• Pressure Range: 0 to 200 PSI (with dual-scale equivalent of 0 to 14 kg/cm² or bar)

• Mounting Position: Direct bottom entry (lower mount) for vertical installation

• Connection Type: 1/4" BSP (British Standard Pipe) male thread

• Case Material: Mild Steel (MS) casting/casing with a protective black coating

• Internal / Wetted Parts: Brass socket, movement, and copper alloy Bourdon tube

• Accuracy Class: ±2% to ±3% of full scale span (standard commercial/industrial grade)

• Window / Lens: Clear plain glass or acrylic

• Design Type: Dry type (non-liquid filled) configuration

• Suitable for measuring pressure in systems using media that are non-corrosive to brass and mild steel.

• Commonly used in air compressors, pneumatic lines, water tanks, and general industrial piping.
