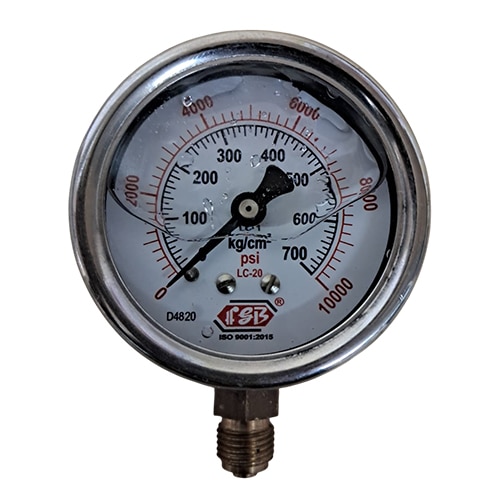

21/2'' DIAL0-700 KG 1/4 BSP BOTTOM COMPLETE SS GLY FILLED

Type Bourdon Tube Pressure Gauge

Dial Size 2½“ / 63 mm

Range 0–700 kg/cm² (≈ 10,000 psi)

Mounting Direct, Bottom Entry

Process Connection 1/4” BSP(M)

Case Material SS 304

Bezel/Ring SS 304

Wetted Parts SS 316 / SS 316L preferred for complete SS construction

Bourdon Tube SS 316

Movement SS

Filling 100% Glycerine Filled

Accuracy ±1.0% to ±1.6% FSD, depending on manufacturer

Dial Aluminium, white with black markings

Pointer Black, balanced type

Window Toughened glass

Protection IP65

Overpressure Typically up to 1.3 × FSD, subject to manufacturer design

Scale kg/cm²; dual scale psi optional

Application Hydraulic systems, high-pressure pumps, pressure testing and industrial equipment

A 2½“ / 63 mm glycerine-filled gauge with 0–700 kg/cm² range is a standard high-pressure configuration, and manufacturers list 700 kg/cm²/10,000 psi versions with stainless-steel construction.Recommended purchase description:

2½” DIAL, 0–700 KG/CM², 1/4" BSP(M) BOTTOM, COMPLETE SS 316 WETTED PARTS, SS 304 CASE & BEZEL, GLYCERINE FILLED, ±1.0% FSD ACCURACY, IP65, WITH CALIBRATION CERTIFICATE
