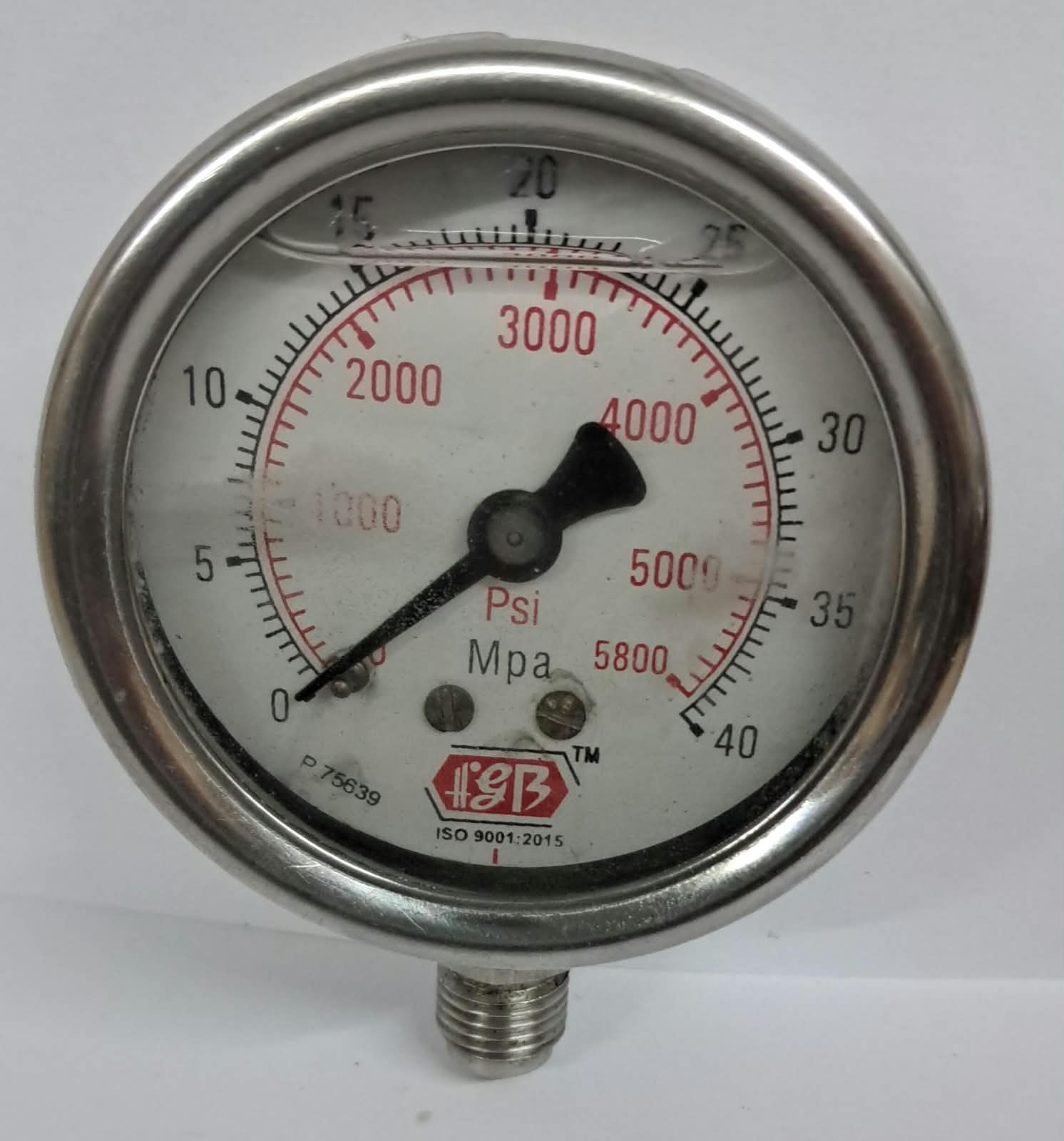

21/2'' DIAL0-40 MPA 1/4 BSP BOTTOM COMPLETE SS

Dial Size: 2.5 inches (63 mm)Pressure Range: 0 to 40 MPa (Megapascals) / Dual scale optional (e.g., 0 to 400 bar / 0 to 5800 psi)Connection Size: 1/4" BSP (British Standard Pipe)Connection Location: Bottom mount (Vertical entry)Material (Wetted Parts): 316 Stainless Steel (SS316) for the bourdon tube and process connection Material (Case & Bezel): 304 Stainless Steel (SS304) with a crimped or bayonet bezel ring Accuracy Class: ±1.6% of full scale value (per EN 837-1)Window/Lens Material: Poly carbonate, laminated safety glass, or tempered glasS Movement: Stainless steel Pointer: Black aluminum, fixed or micro-adju stable Dial Face: White aluminum with black markings and pointer stop-pin Liquid Filling: Glycerin or Silicone filled (optional for vibration/pulsation dampening), or dry (fillable)
