pressure gauge gly filled
INR 2250

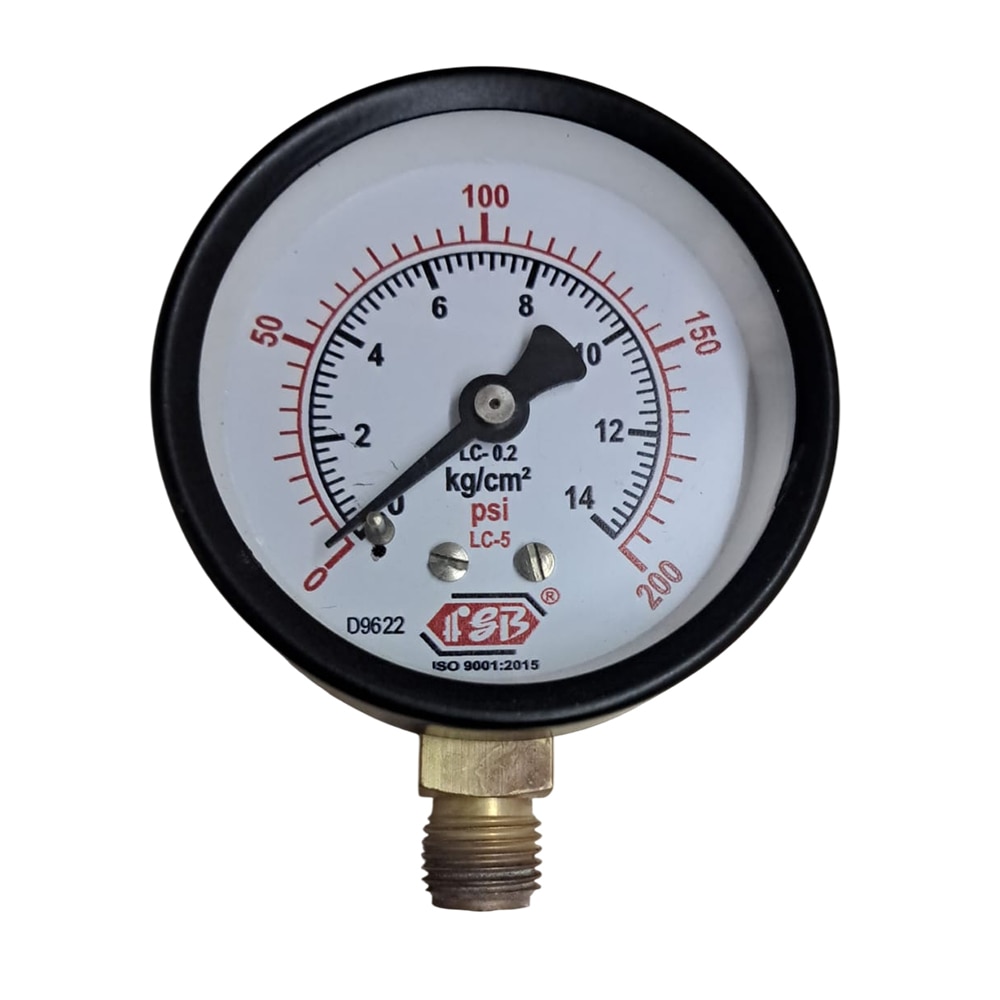

The 2-inch dial, 0–200 psi pressure gauge with a 1/4“ BSP bottom connection, mild steel casing, and brass internals is a robust commercial instrument. It features dual scaling (psi and kg/cm²), a dry design, and general-purpose utility for non-corrosive media like air, water, and oil Dial Size: 2 inches (50 mm)Pressure Range: 0–200 psi (0–14 kg/cm² dual scale)Process Connection: 1/4” BSP (British Standard Pipe) Male Mounting Position: Bottom (Lower) mount Case Material: Mild Steel (MS), black coated/painted finish Internal / Wetted Parts: Brass socket and movement, copper alloy/phosphor bronze Bourdon tube Window / Lens: Clear plain glass or acrylic Accuracy: ±2.5% to ±3% of full scale span Application Suitability: Pneumatics, compressors, water tanks, and general industrial piping with media non-corrosive to brass.
