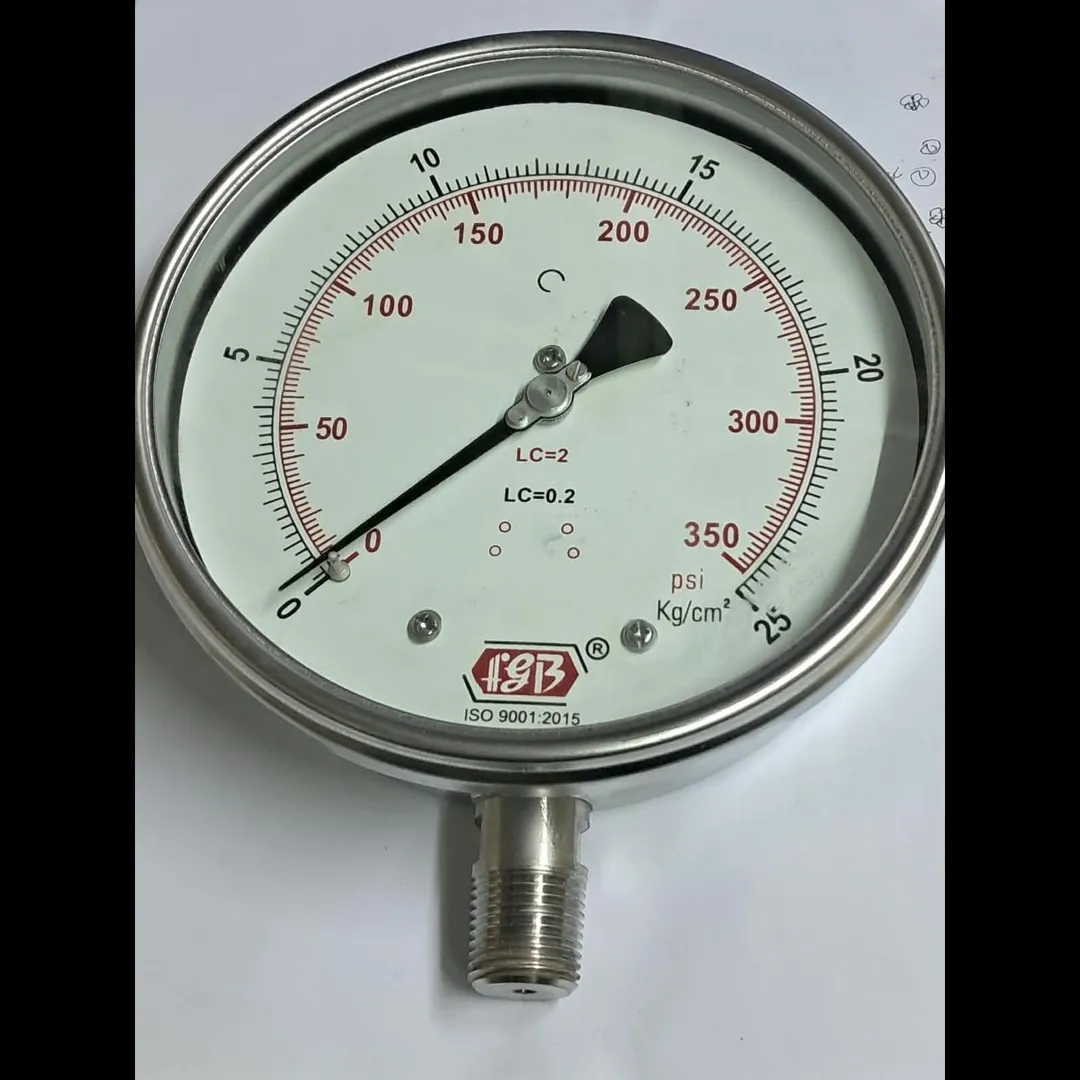

Dial Size: 6 inches (150 mm)Pressure Range: 0 to 25 kg/cm² (dual scale with psi or bar is common, but primary is kg/cm²)Mounting / Connection Location: Bottom mounting Process Connection Size: 1/2' NPT (National Pipe Thread) - Male Wetted Parts Material: Stainless Steel (typically SS 316 or SS 316 L for the bourdon tube and shank)Case & Bezel Material: Stainless Steel (typically SS 304 or SS 316) with a bayonet ring Movement: Stainless Steel (SS 304)Window/Lens: Shatterproof safety glass or laminated safety glass Dial Face: Aluminum, white background with black markings and pointer Pointer: Micro-adjustable pointer (aluminum, black finish)Accuracy: ±1.0% of Full Scale Deflection (Class 1) or better per ASME B40. 100 / EN 837-1 Ingress Protection: IP 65 / IP 66 (weatherproof/dust proof)Blow-out Protection: Solid front or blow-out disc/grommet at the back of the case for safety Liquid Filling (Optional): Glycerin or Silicone fill able (comes with a fill plug on top to dampen pulsations/vibrations)Operating Temperature:Ambient: -40°C to 65°C (-40°F to 150°F)Medium: Up to 200°C (392°F) for dry gauges; up to 100°C for glycerin-filled gauges
