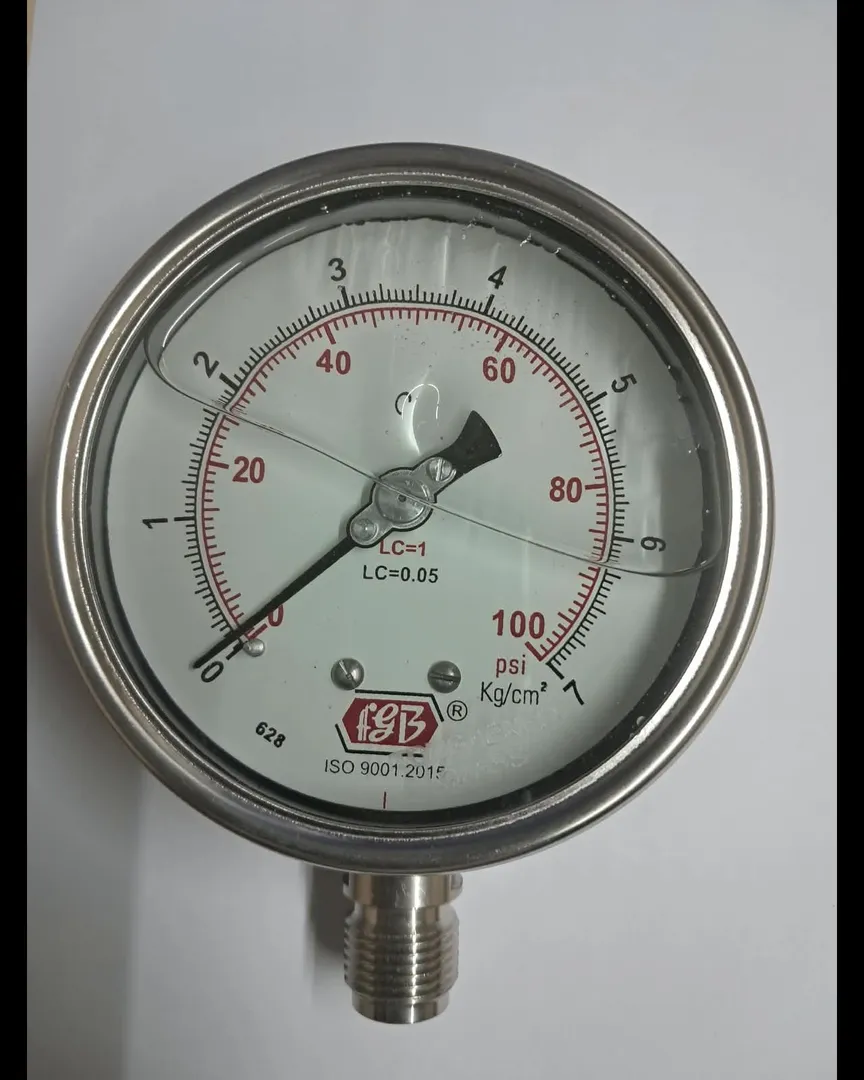

Dial Size: 4 inches (100 mm)Pressure Range: 0 to 100 PSI (Typically accompanied by a dual scale of 0 to 7 kg/cm² or 0 to 7 bar)Mounting Entry: Direct Mounting, Bottom Entry Process Connection: 3/8' BSP (British Standard Pipe), Male thread Liquid Filling: Glycerin (99.5% pure industrial grade)Case & Bezel Ring: Stainless Steel 304 (Bayonet type closure or hermetically sealed crimped ring) Wetted Parts (Socket & Bourdon Tube): Stainless Steel 316 / 316 L (provides maximum corrosion resistance)Movement Mechanism: Stainless Steel 304 Dial Plate: Aluminum, white background with distinct black (PSI) and red/blue (bar/kg/cm²) lettering Pointer: Aluminum, black finish (micro-adjustable or standard push-fit)Window (Lens): Shatterproof safety glass or heavy-duty poly carbonate
