Type

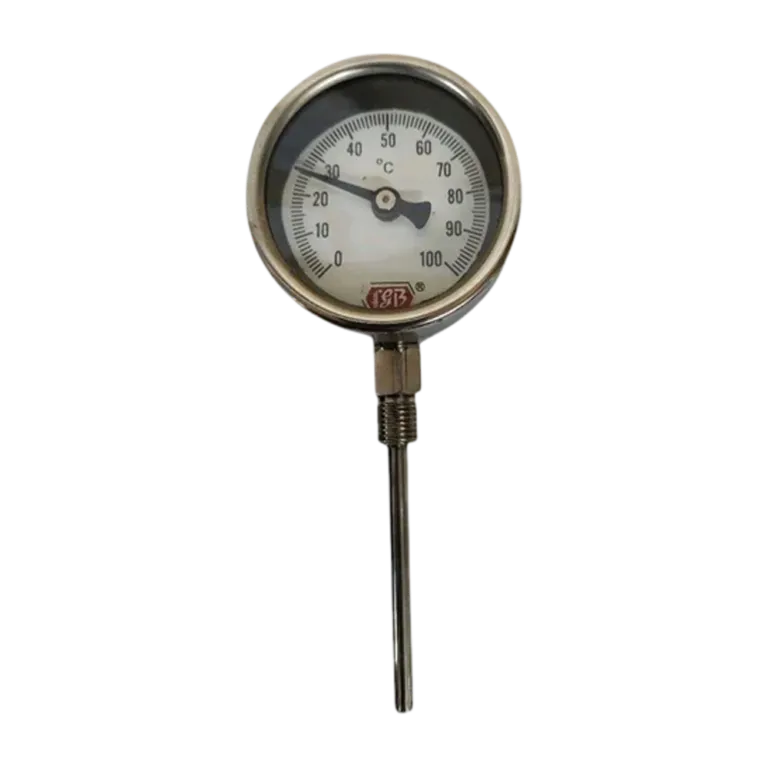

Bi-Metallic Temperature Gauge Dial Size 63, 100, 150 mm
Temperature Range -20°C to 400°C; other ranges available
Accuracy ±1% F.S.
Case Material SS 304
Stem Material SS 304 / SS 316
Dial Aluminium, white with black markings
Pointer Aluminium, black finish
Window Glass / Shatterproof Glass
Process Connection ½' BSP / NPT
Mounting Bottom Entry / Back Entry
Stem Length 50, 100, 150 mm or as required
Protection Weatherproof / IP55 depending on model
Standard EN 13190
Application Pipeline, tank, boiler, HVAC, chemical, food & pharmaceutical industries
A commonly offered Indian configuration is 100 mm dial, 0–250°C range, SS304 case, bimetallic coil, ½' BSP connection, 150 mm stem and 1% F.S. accuracy.
For a product catalogue, you can use this short specification:
“Bi-Metal Temperature Gauge, SS304 construction, 100/150 mm dial, bimetallic coil sensing element, accuracy ±1% F.S., temperature range up to 400°C, SS304 / SS316 stem, ½″ BSP / NPT connection, bottom/back entry mounting
Bi-Metallic Temperature Gauge Dial Size 63, 100, 150 mm
Temperature Range -20°C to 400°C; other ranges available
Accuracy ±1% F.S.
Case Material SS 304
Stem Material SS 304 / SS 316
Dial Aluminium, white with black markings
Pointer Aluminium, black finish
Window Glass / Shatterproof Glass
Process Connection ½' BSP / NPT
Mounting Bottom Entry / Back Entry
Stem Length 50, 100, 150 mm or as required
Protection Weatherproof / IP55 depending on model
Standard EN 13190
Application Pipeline, tank, boiler, HVAC, chemical, food & pharmaceutical industries
A commonly offered Indian configuration is 100 mm dial, 0–250°C range, SS304 case, bimetallic coil, ½' BSP connection, 150 mm stem and 1% F.S. accuracy.
For a product catalogue, you can use this short specification:
“Bi-Metal Temperature Gauge, SS304 construction, 100/150 mm dial, bimetallic coil sensing element, accuracy ±1% F.S., temperature range up to 400°C, SS304 / SS316 stem, ½″ BSP / NPT connection, bottom/back entry mounting
