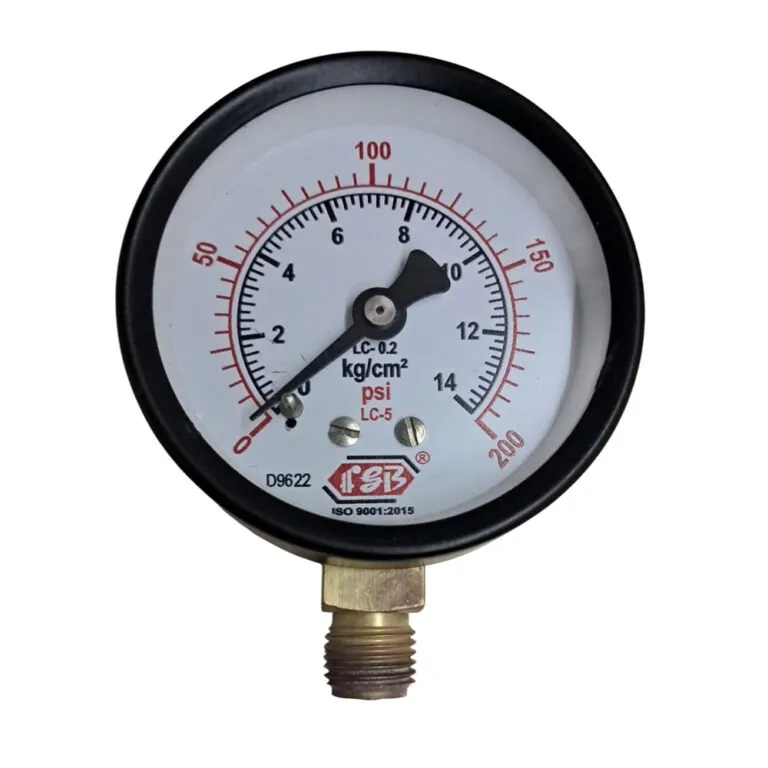

Dial Size: 2 inches (approx. 50 mm to 63 mm)Pressure Range: 0 to 200 psi (equivalent to 0 to 14 bar or kg/cm²)Connection Type: 1/4' BSP (British Standard Pipe), bottom-mountedCase / Casing Material: Mild Steel (MS), typically black coatedWetted Parts (Internal Connection/Socket & Movement): BrassDial Face: White plastic or aluminum with black and red dual-scale or psi/bar markingsPointer: Black-coated aluminumWindow / Lens: Clear plain glass or acrylicAccuracy: ±2.5% to ±3.0% of full scale (Grade B / standard utility class)Application: Suitable for non-corrosive media like air, water, oil, and gas .Mounting: Bottom connection allows direct vertical mounting onto pipelines, regulators, or pressure tanks.Operation: Uses a standard brass Bourdon tube mechanism that expands with pressure to move the pointer across the dial
